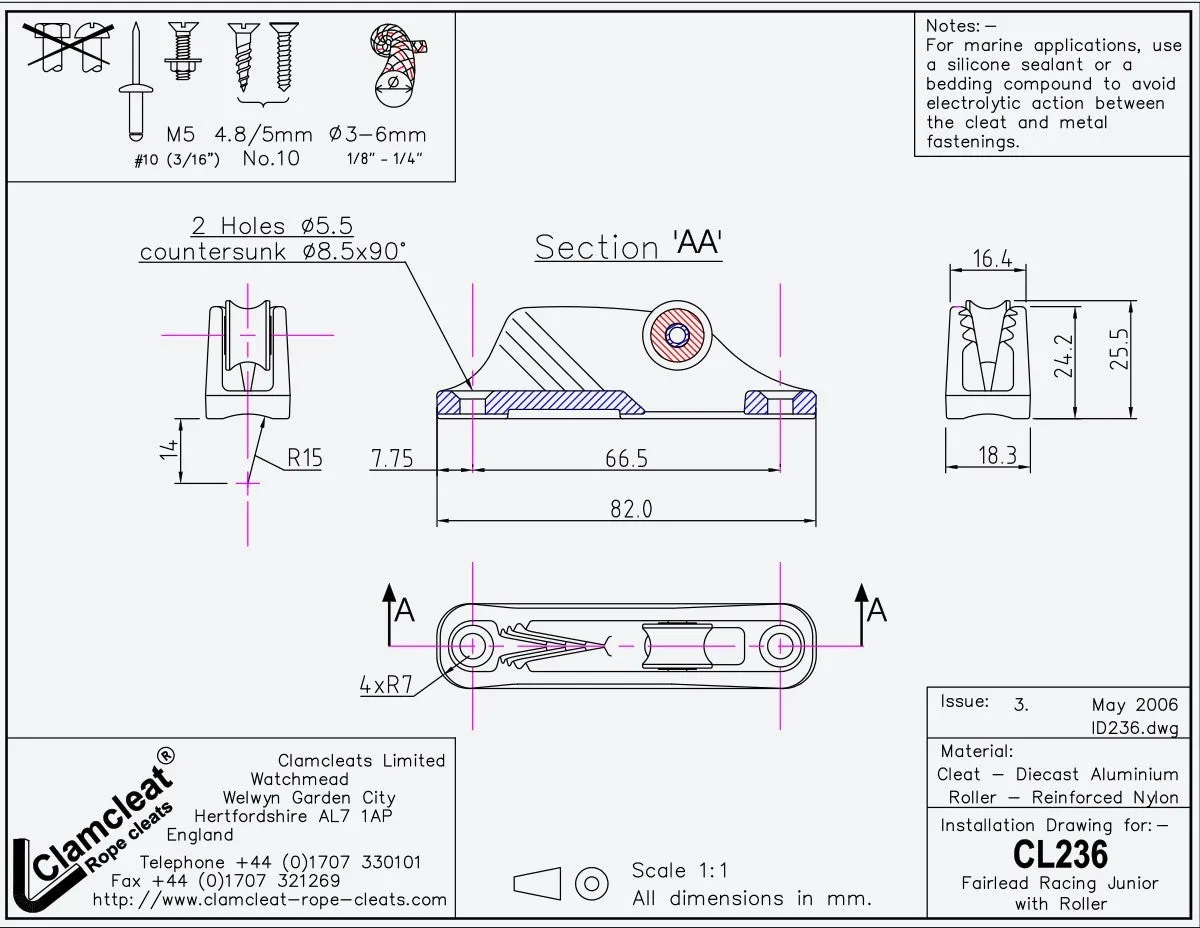

| Technical Details | Metric | Imperial | |
|---|---|---|---|

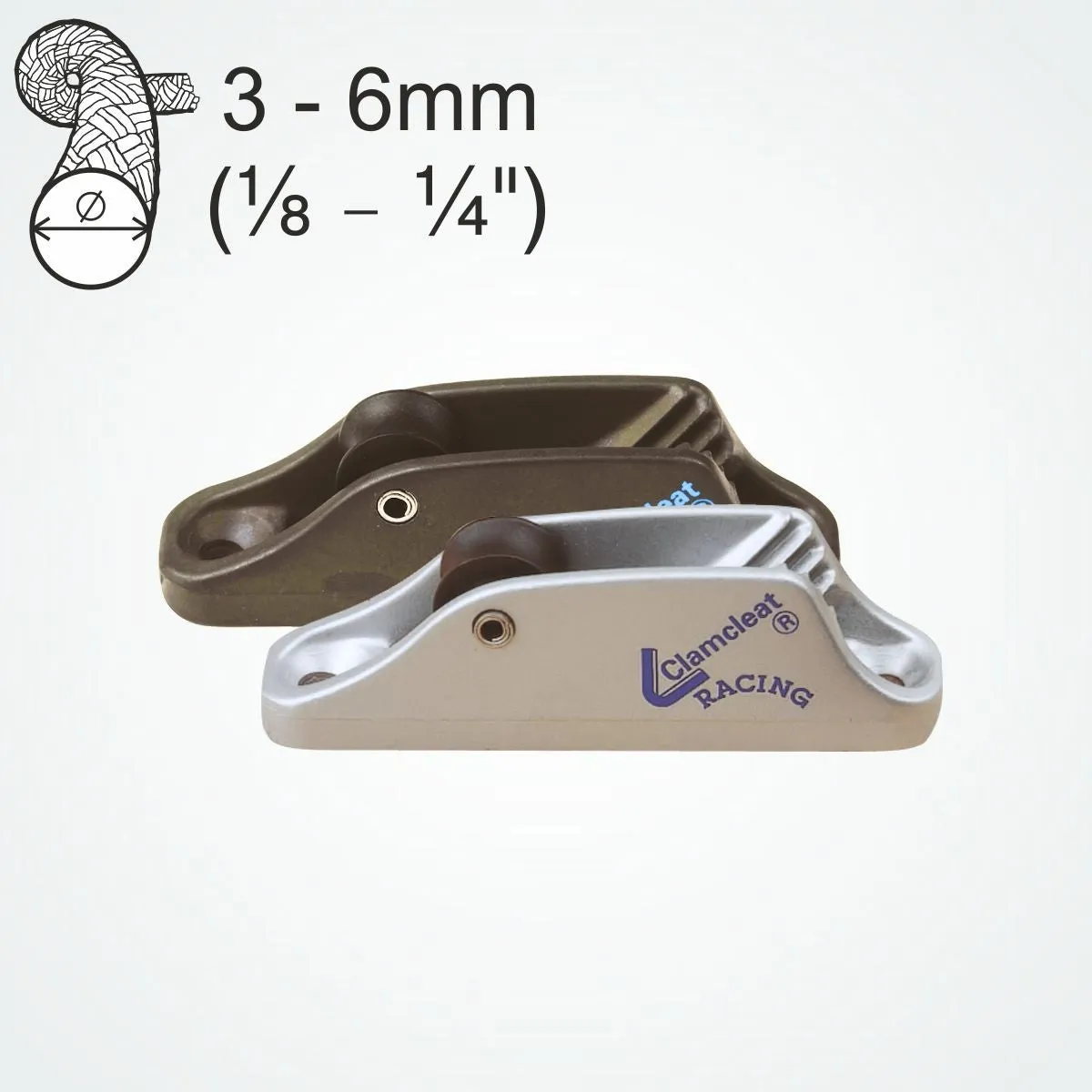

| Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
| Material | Aluminium & Nylon | Aluminium & Nylon | |
| Hole Centres | 66mm | 2 5/8" | |
| Length | 82mm | 3 1/4" | |
| Width | 18mm | 11/16" | |
| Height | 25mm | 1" | |
| Bolt Size | M5 | #10-24. 3/16" | |
| Screw Size | 4.8 | No 10 | |
| Weight | 40gms | 1.4oz |

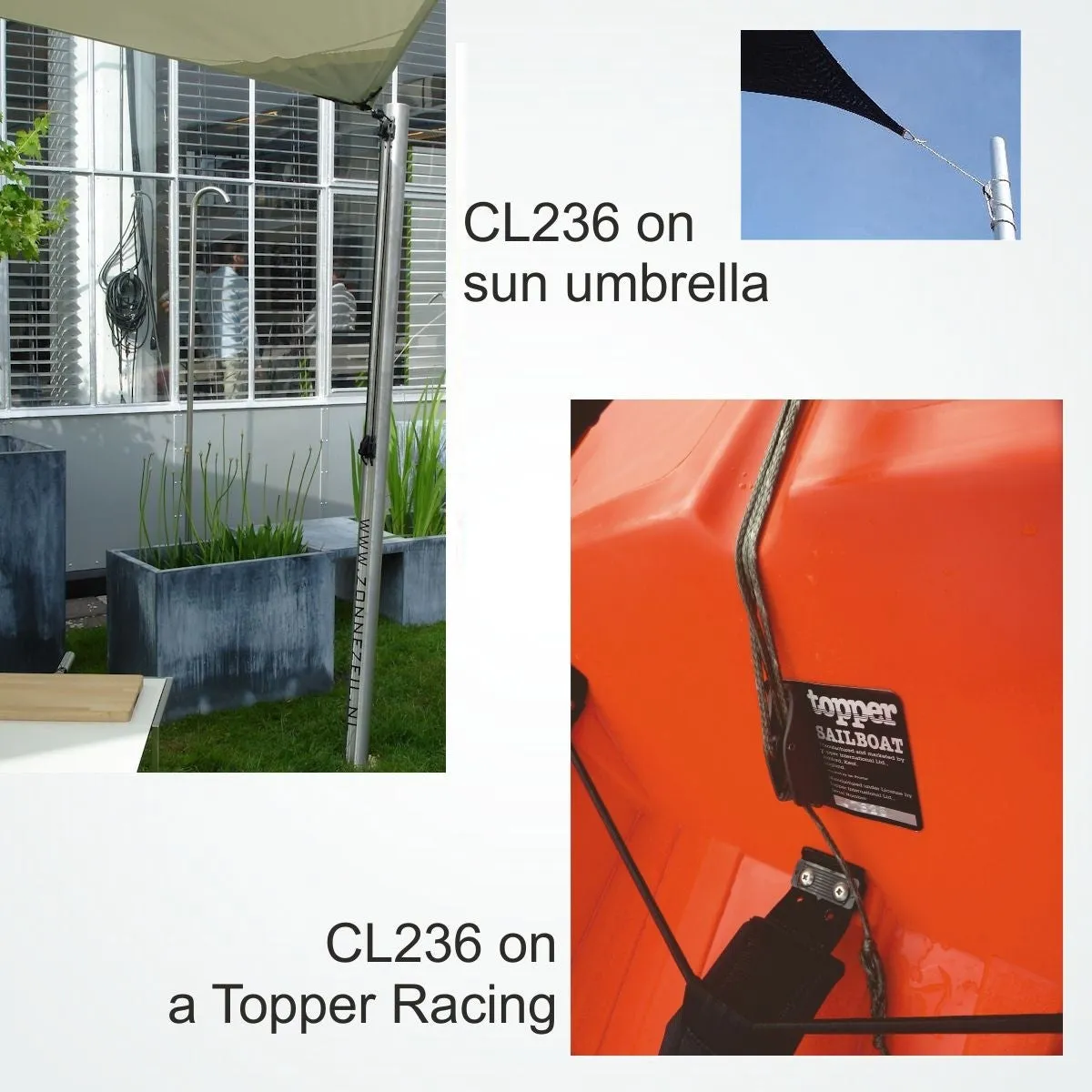

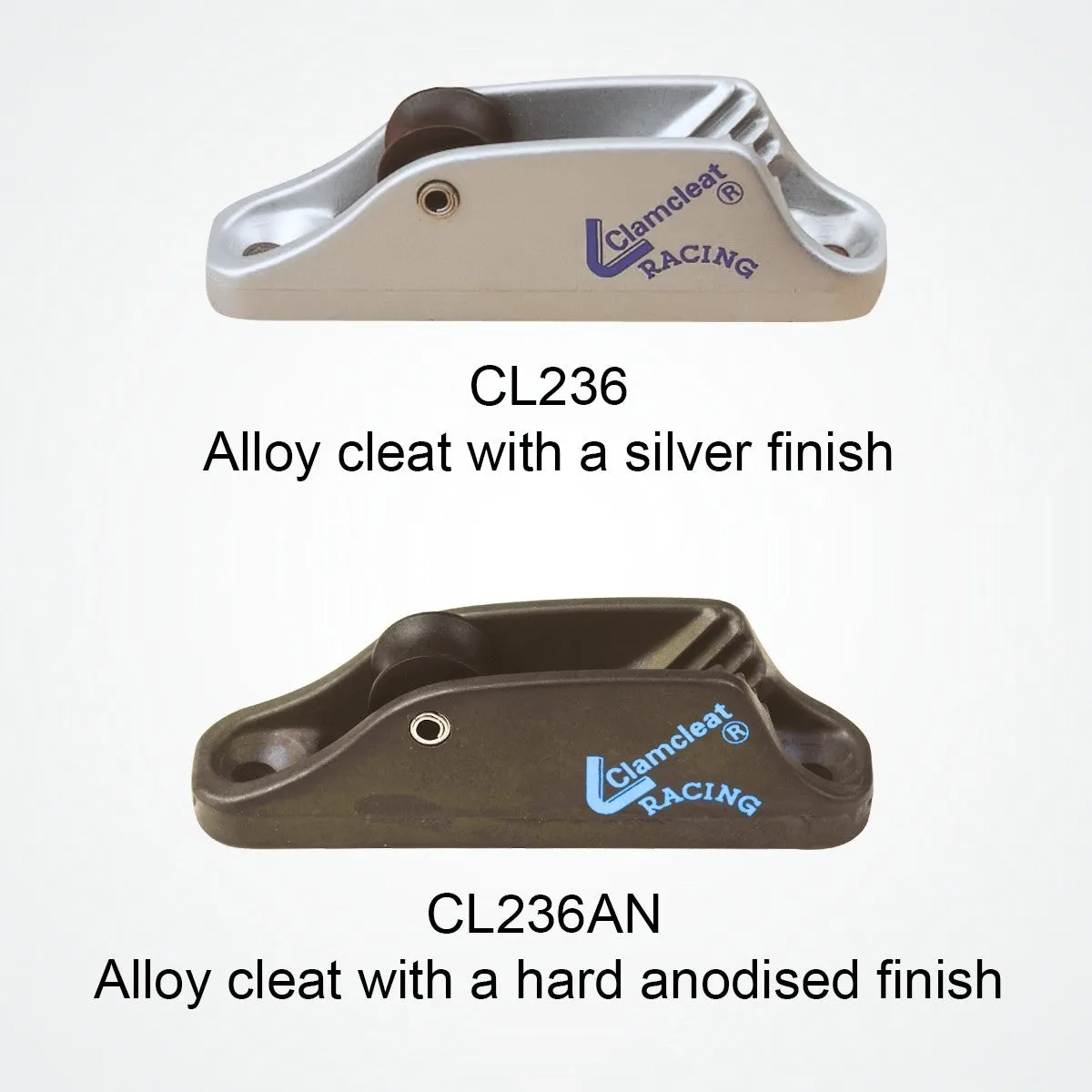

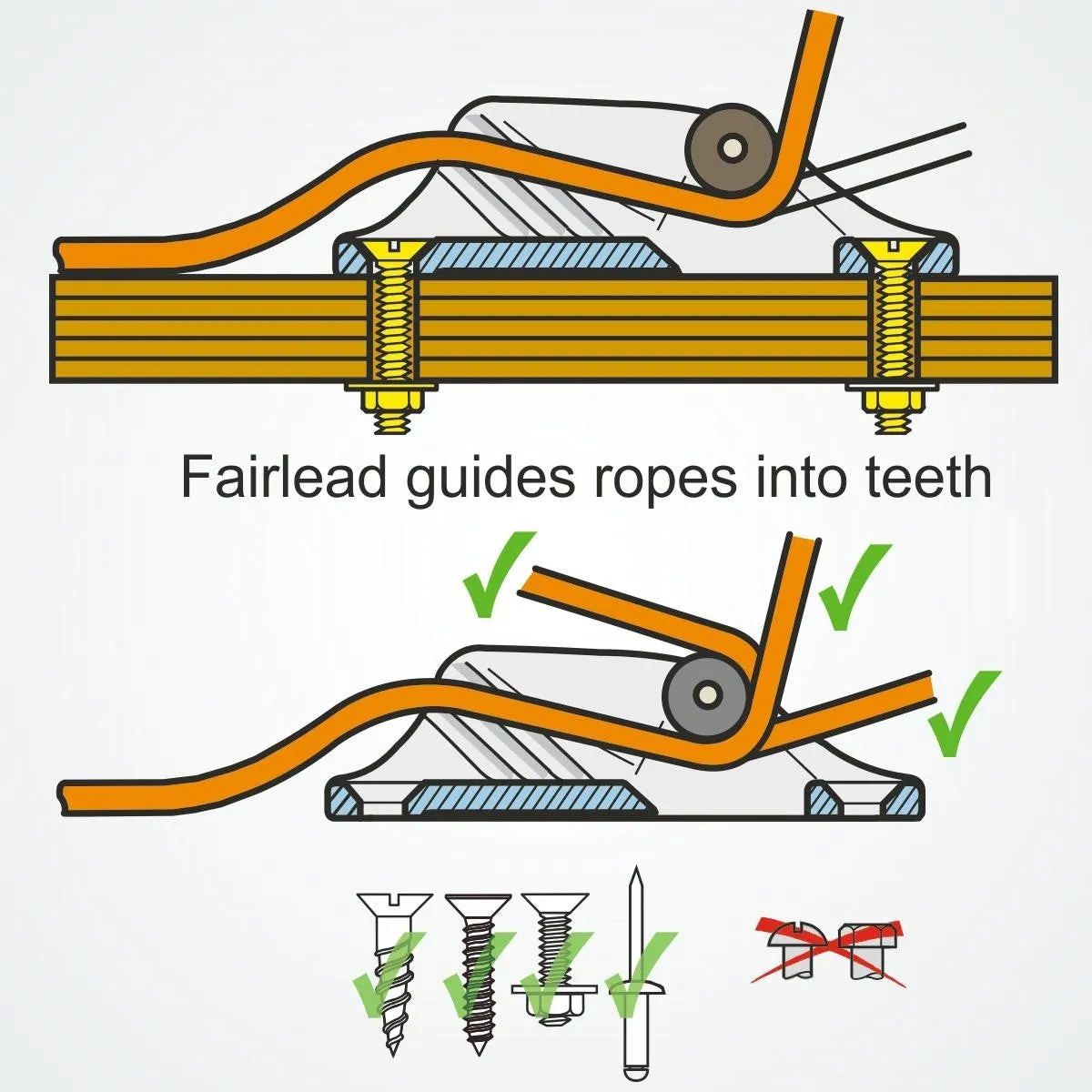

The roller fairlead allows ropes to enter the cleat from above. Ideal for sun umbrellas, shades & sun sails. Also dinghy control lines. Available in two finishes: - CL236 has a silver stove enamel finish for a cost effective, high quality coating. - CL236AN has a hard anodised finish to give a hard wearing surface. A nylon version is available for lower loads - CL203/S1. This cleat can be used for drop-down work surfaces. For instance, Mess Box uses them for their kitchens.
